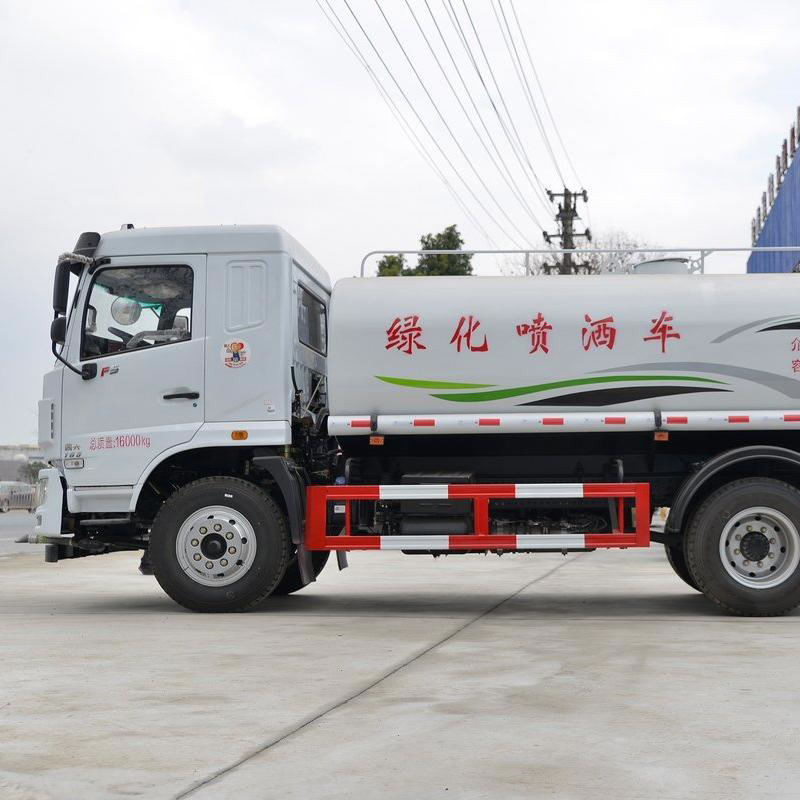

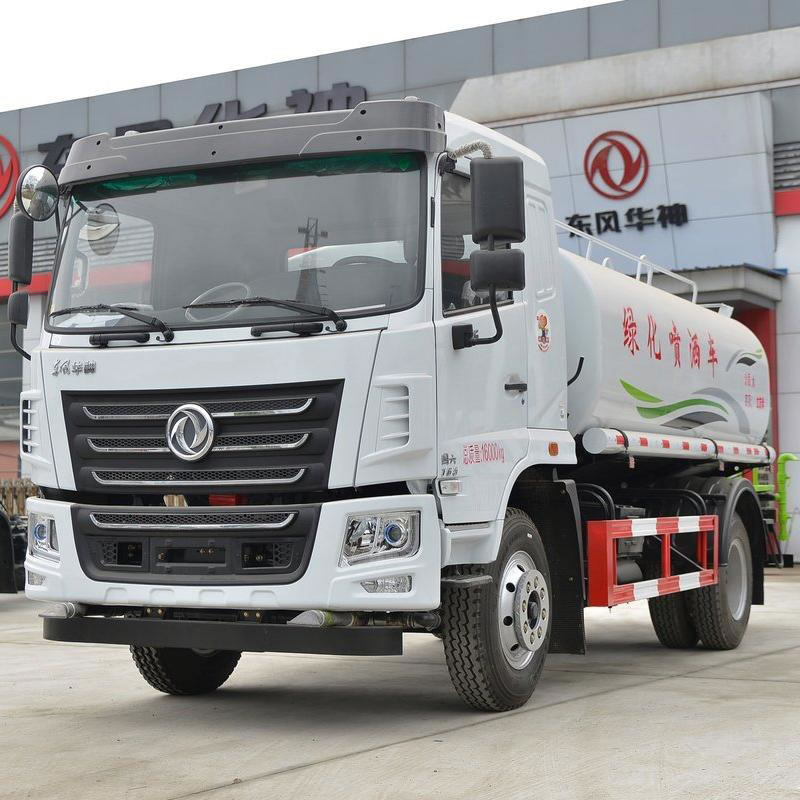

Dongfeng Huashen F5 4×2 165HP Greening Sprinkler Truck

Product Features

• Standardized assembly line production, new appearance, modular design, full assembly without welding, 14 processes, can be completed offline in 90 minutes.
• The tank body adopts automatic assembly line production technology: cutting, automatic welding of spliced plates, spinning forming of head, one-time packaging of tank body, automatic welding of circular shape and other advanced domestic production technologies.
• Adopting a specialized customized high-power water pump, it has the characteristics of excellent performance, reliable operation, high efficiency, and large flow rate. The forward thrust can reach 8 lanes in both directions, and the rear spray can reach 4 lanes in both directions. The maximum range of the anti-aircraft gun is 40 meters.
• The inlet pipeline adopts a 76 pipe with a large inlet capacity, saving water addition time and promoting work efficiency.
• The tank body and auxiliary beam are connected by connecting plate bolts. In the event of bumps and poor road conditions during vehicle operation, the tank body and auxiliary beam are less prone to displacement and other unsafe factors, providing stronger safety and stability.
• The tank body is connected to the inlet and outlet using a Φ 76 hose to reduce damage to the pipeline and auxiliary beam caused by friction during driving
• The connection between the tank body and the main beam is double supported, providing stronger support and higher safety.
• There are two drainage outlets at the bottom of the tank, which can better drain the remaining water inside the tank in winter to prevent freezing and cracking.
• The guardrail of the tank body behind the manhole has been shortened, and a ladder has been added to the entrance for easy inspection of the inside of the tank.
• The connection plate of the rear platform is connected, and the platform surface is a punched platform, which enhances the load-bearing capacity and is anti slip and not easily deformed.
• Acrylic organic glass hollow bright tube, beautiful and practical; The flange seal is a O-ring, which is more sealed and durable.
• The water tank of the whole vehicle has 2-3 compartments, with a through hole at the lower end of the partition and a wave proof plate inside to reduce the impact of the liquid inside the tank during driving.
• The connection of the side protective circular tube is a bent part connection, which improves the firmness coefficient.
• Adopting electrophoretic technology, the coating has high transparency and plumpness, with special luster, transparency, and three-dimensional effect
