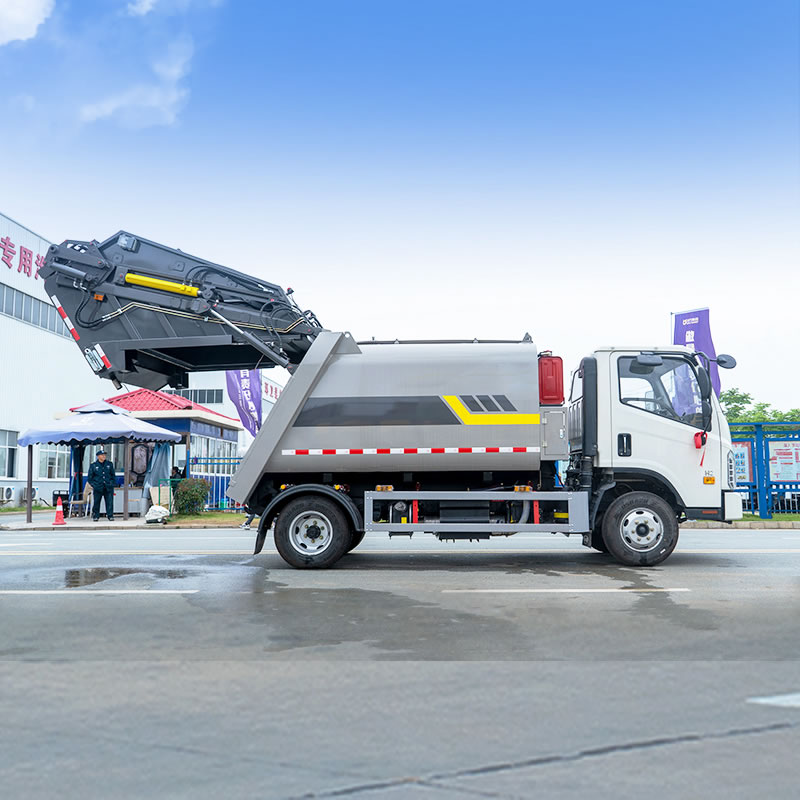

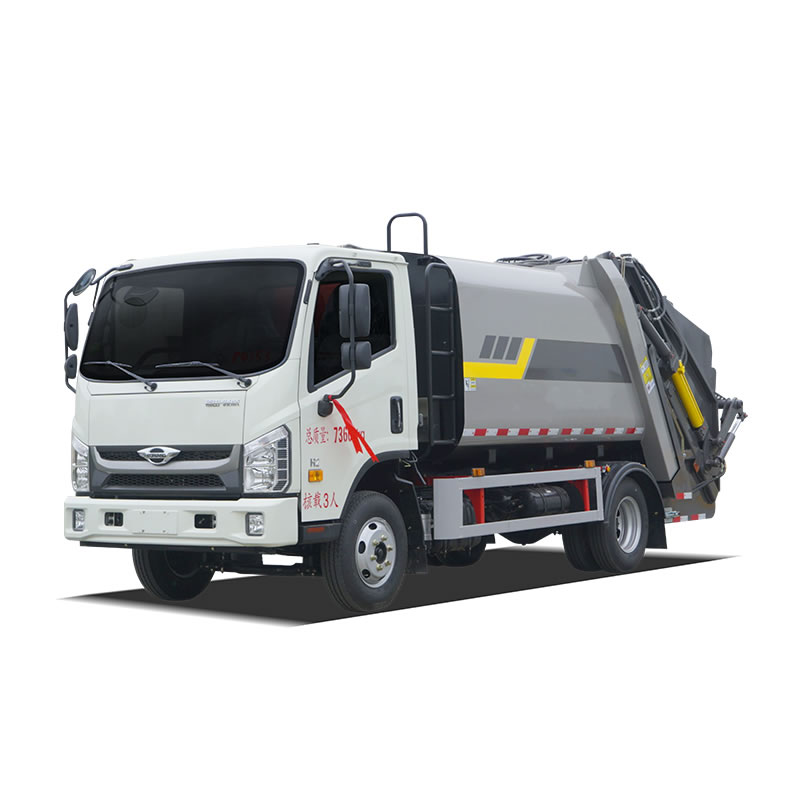

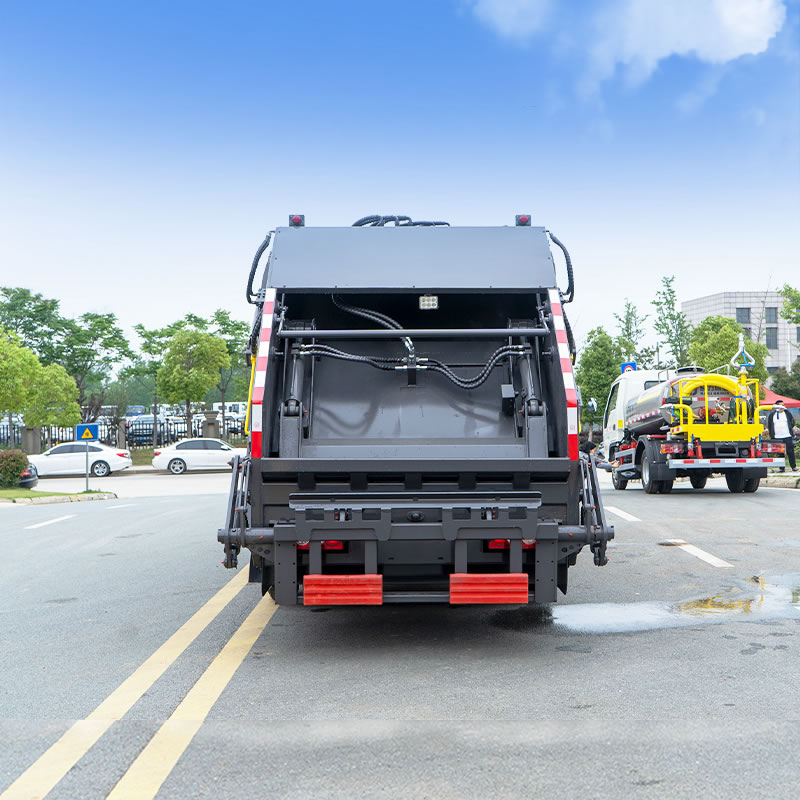

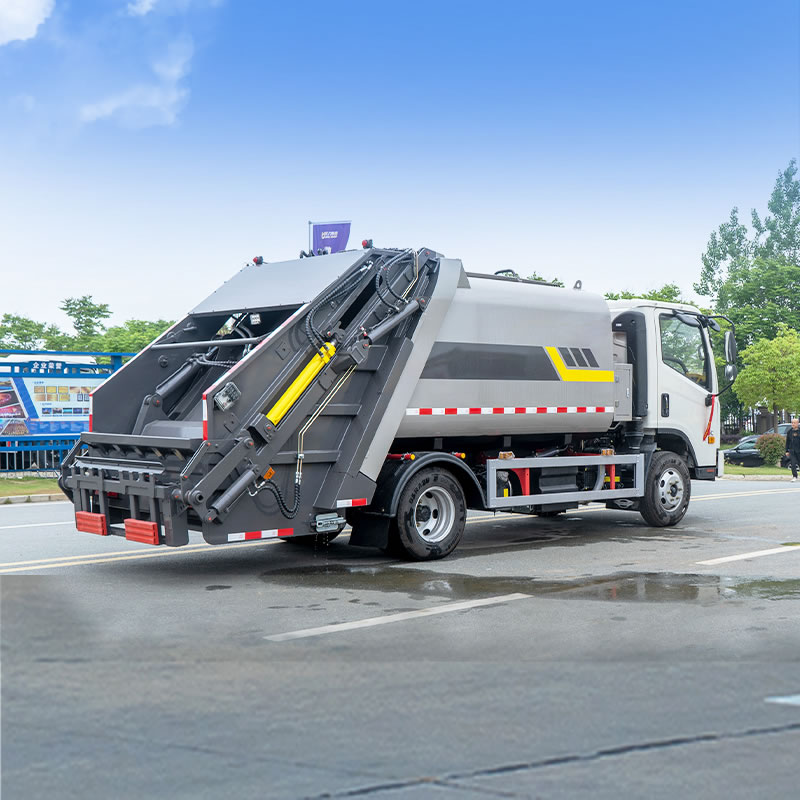

FOTON 7CBM 4×2 Compactor Garbage Truck
FOTON 7CBM 4×2 Compactor Garbage Truck is a compact and efficient solution for daily city waste collection with hydraulic operation and strong compression.
Product Description
The FOTON 7CBM 4×2 Compactor Garbage Truck is a highly efficient and compact solution for daily waste collection in cities, towns, and residential areas. With a 7-cubic-meter (7CBM) compactor capacity, it is ideal for handling moderate waste loads with excellent efficiency and minimal labor.
This truck uses a 4×2 drive configuration, which ensures smooth operation and excellent maneuverability in narrow streets and urban environments. The rear compaction system compresses garbage as it’s loaded, increasing capacity and reducing the frequency of trips to dumping sites, ultimately lowering operational costs.
Equipped with a hydraulic control system, the FOTON compactor ensures quick, safe, and hygienic loading and unloading. The truck’s body is constructed from reinforced steel and coated for corrosion resistance, guaranteeing durability even under tough conditions.
The driver’s cabin is ergonomically designed with intuitive controls and good visibility, providing comfort and ease of use for long working hours. Whether for municipal sanitation departments or private contractors, this model offers a great balance of efficiency, capacity, and compact design.
Key Features
- Capacity: With a capacity of 7 cubic meters, this truck can handle a significant amount of waste in a single trip, reducing the number of required trips and ultimately saving on operational costs.
- Compression System: The truck is equipped with an advanced compression system that effectively reduces the volume of waste, allowing for more efficient storage and transportation.
- Durability: Made from high-quality materials, the truck is built to last, ensuring reliability and durability even under heavy-duty conditions.
- Easy Operation: The intuitive control system and ergonomic design make the truck easy to operate, reducing the need for specialized training.
- Environmental Compliance: The truck meets all relevant environmental standards and regulations, ensuring that waste is disposed of in a safe and responsible manner.
Product Attributes
| Item | Specification | Remarks |
| Vehicle Model | KLF5070ZYSB6 | 4th Generation New Compressed Type |
| Wheelbase (mm) | 3360 | |
| Tires | 7.00 Steel Radial Tires | |
| Engine Model | Q23-115E60 (Quanchai 115 hp) Q28-130C60 (Quanchai 130 hp) Q25-152E60 (Quanchai 152 hp) | China VI Emission Standard, Diesel Engine |
| Engine Power (kW) | 85/96/112 | |
| External Dimensions (Length x Width x Height, mm) | 6965x2080x2650 | Four different tail structures, varying overall length depending on the structure |
| Unladen Mass (kg) | 5750 | Certified based on the actual weight of the vehicle |
| Maximum Gross Mass (kg) | 7360 | |
| Rated Mass (kg) | 1415 | |
| Effective Volume of Compartment (m³) | 7 | |
| Operation Modes | Electric Control / Manual / Remote Control | All three operation modes are standard configurations |
| Single Loading Cycle Time | 12-25S | |
| Dumping Time | ≤60S | |
| Tail Device | Standard: Flip Plate | Optional: Triangular Hopper, Ground Hopper, Swing Arm |
