Customizable Aerial Work Platforms & Truck Cranes
Customizable aerial work platforms and truck cranes provide high reach, heavy-duty lifting, and enhanced safety, offering tailored solutions for various industrial applications.
Product Description
Customizable Aerial Work Platforms & Truck Cranes are designed to meet the diverse needs of industries requiring elevated access and heavy lifting capabilities. These versatile machines offer robust performance for construction, maintenance, and inspection tasks at high altitudes.
The aerial work platforms are engineered with advanced hydraulic systems, ensuring smooth operation and maximum control for lifting, lowering, and extending the platform. The truck cranes are built to handle heavy loads with ease, making them ideal for a wide range of industrial applications.
POIN provides extensive customization options for these platforms and cranes, allowing customers to tailor the machines to their specific operational needs. Whether it’s adjusting the lifting height, reach, or power source, Dongfeng ensures the equipment meets the exact requirements of the job.
With a focus on safety, all platforms and cranes are equipped with emergency stop buttons, anti-slip platforms, and automatic leveling systems to guarantee stability and safety during operation.
Composition and purpose

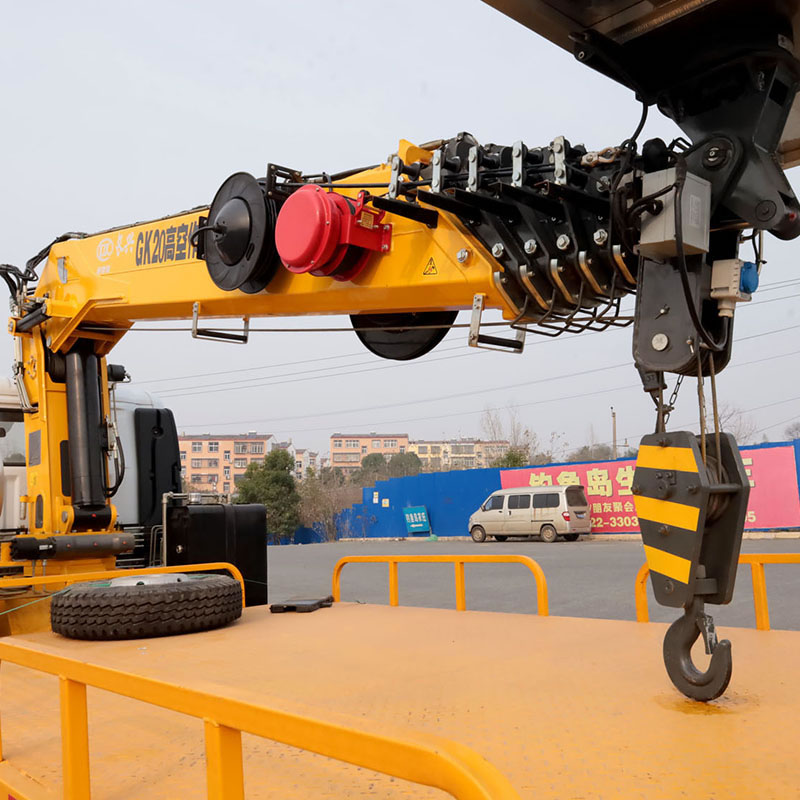

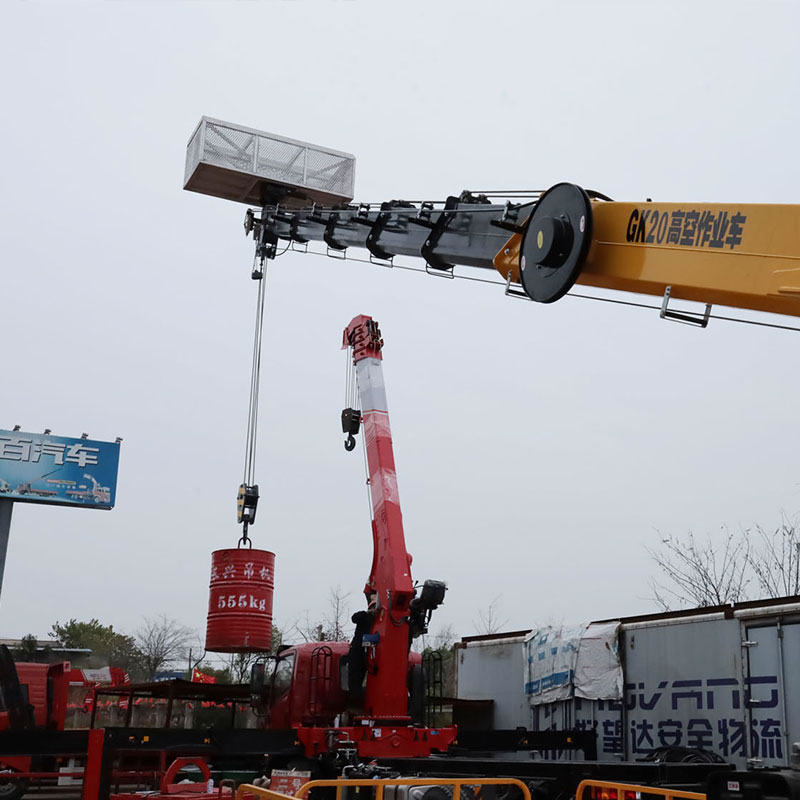

- Crane arm: The boom is extended and retracted by hydraulic cylinders, and the hook pulley is suspended from the top of the boom.
- Load indicator: The load indicator indicates the total rated load of the vehicle chassis in an unloaded state for various boom lengths and boom angles.
- Hoisting mechanism: The hoisting mechanism is driven by a hydraulic motor and lifts or lowers heavy objects through a steel wire rope.
- Column: The column supports the boom, winch mechanism, and amplitude cylinder, and is driven by the slewing system.
- Rotary system: The rotary system generally includes hydraulic motors, hydraulic gearboxes, etc., which rotate the columns.
- Frame base: The base is directly installed on the car chassis, supporting the pillars and leg supports.
- Hydraulic oil tank: The hydraulic oil tank contains specialized hydraulic oil for the crane and serves as a cooling and sinking control for the left and right leg cylinders. The control lever is used to control the extension and retraction of the leg cylinders.
- Leg oil cylinder: During the operation of the crane, in order to stabilize the vehicle, the leg cylinder is extended to the ground to improve the operational stability of the crane.
- Speaker: Used to warn personnel within the scope of lifting operations.
- Accelerator control lever: The accelerator lever is used to adjust the speed and output power of the engine to meet the lifting requirements.
- Rotary control lever: The rotary control lever is used to control the rotary mechanism, allowing the column and crane arm to rotate left and right.
- Variable amplitude control lever: The amplitude control lever is used to control the telescopic action of the amplitude cylinder and achieve high and low control of the boom.
- Winch control lever: The winch control lever is used to control the winch mechanism (to lift or lower heavy objects).
- Telescopic control lever: The telescopic control lever is used to control the action of the telescopic oil cylinder, and the boom is controlled by the telescopic pulley frame.
- PTO: The PTO lever (power take-off lever) is used to control the power output and cut-off of the engine to the on-board crane.
- Variable amplitude oil cylinder: The variable amplitude oil cylinder is an actuator that causes the lifting arm to tilt upwards or downwards.
- Hook pulley system: By increasing or decreasing the pulley on it, the conversion of the hoisting ratio can be achieved, and heavy objects can be directly hooked and lifted.
- Steel wire rope: Transfer the output torque of the drum to the hook.
- Over roll alarm device: When the hook pulley approaches the top of the crane arm, the over roll alarm device automatically sends out an alarm signal. This can prevent the steel wire rope from over winding. The most advanced over roll alarm device is the solar wireless anti roll device that comes standard with cranes such as Hongchang Tianma.
- Rear leg: Installed at the rear of the vehicle’s rear axle, connected to the main beam, further improving the overall stability of the vehicle.
Product Advantage
- Adopting advanced CNC plasma cutting technology to finely process product components
- Boring and milling machining increases the concentricity of components, prolongs their service life, and improves the efficiency of dual telescopic cylinder technology.
- invisible H-shaped support legs and double section transverse support legs with longitudinal support legs at the tail, with a large longitudinal span and high safety performance.
- Adopting imported oil pipe joints from the United States, it has strong sealing, anti-oxidation, and is not easily corroded.
- The independently developed hydraulic station for automobile lifting motors has the advantages of enhanced driving force, more stable operation, energy conservation and environmental protection.
- Independently developed gantry crane for automobile cranes, which improves the safety and service life of the lifting arm.
- independently developed crane nose device, reducing the amount of processing for the crane arm, making operation and adjustment healthier.
- Using the world’s leading quality inspection system, we strictly control every procedure on the visual assembly line.
- arm crane is made of HG785 steel and has undergone 45 steel modulation treatment to enhance its load-bearing capacity and ensure safe operation.
- The sandblasting technology effectively delays the service life of the paint, and the use of height limiters can set the lifting height of the boom for safer operation.
- planetary rotation adopts a hydraulic self-locking system, which can be controlled to stop at any angle of 360 ° at any time during operation, without producing sliding rods or movement, greatly improving the safety factor of the operation..
- uses multi strand steel wire rope, which has strong toughness and increases the load-bearing lifting torque. There will be no turning phenomenon during lifting, improving the safety factor of the operation.
- frames are made of Q345 manganese steel, which has a tight material structure and strong tensile and bending resistance.
Product Specification
| Brand | POIN |
| Gearbox Type | Manual |
| Old And New | New |
| Emission Standards | Euro 4, Euro 5, Euro 3 |
| Fuel | Diesel |
| Place Of Origin | China |
| Transportation | Ocean,Land |
| Certificate | CCC/GCC/TUV/SGS/OTTC/EU/E-MARKK |
